Lenovo Tab One 8.7 Inch Tablet 3D Printed Wall Mount

NOTE: Wall Mount Made To Fit Lenovo Tab One (2025) 8.7 inch [Model: TB305FU] Only.

Please note these wall mounts have been designed for the power cable to enter from the rear of the mount only and not the top or the bottom this is also applies to the cable in the link.

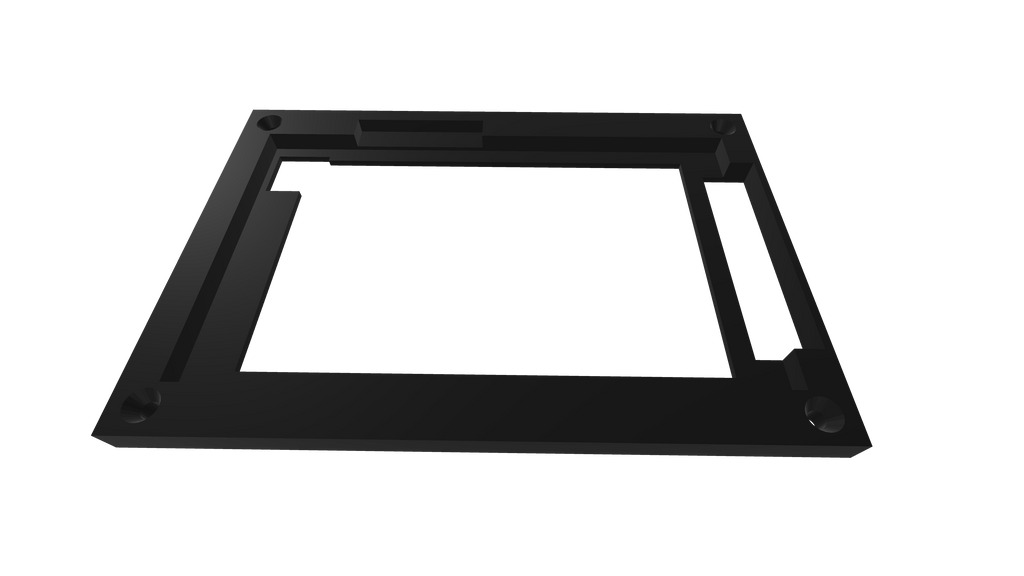

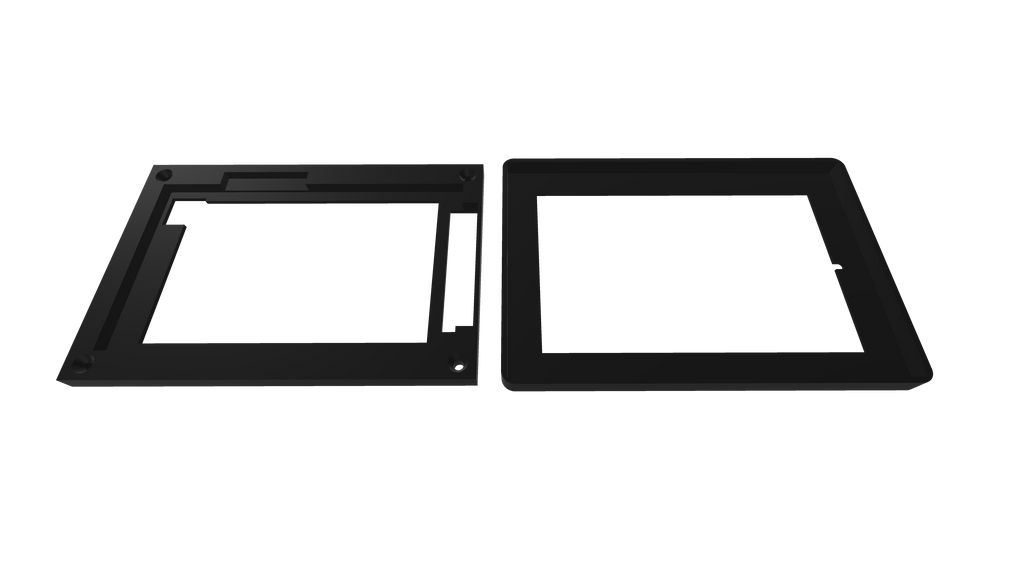

You can find the model number on the back of the tablet on the top near the camera, see link at the bottom for reference. A right-angled cable is required however, should be compatible with most 90 degree or "right angled" cables, verified and designed for cable linked at the bottom. The back plate is always printed in black and the cover is provided in your chosen colour with a hole for the tablets front camera or without. The mount was designed so you can access the tablets buttons by simply removing the cover instead of the entire tablet.

How to Install:

• Test the back plate against your desired surface in your desired location and test fit the tablet into the back plate.

• Optional: You can test fit the tablet with the right angled cable connected and mark where you will drill the cable through a wall or board. This will be on the cut out part of the back plate allowing for charging while on the wall. Then take the mount off to prevent accidental damage and drill the cable through the wall or board.

• If you are happy with the test fit, Secure the back plate to your desired surface using all 4 provided screw holes in the mount (screws and fittings not included)
• Push the tablet into the back plate which is a secure fit and then push the front cover over the back plate. If you drilled a cable hole, this would be the time to push the straight end of the cable through your hole and the right angled connector to the tablet.

Made for this tablet: https://www.amazon.co.uk/Lenovo-Android-Tablet-Display-MediaTek/dp/B0F1YXDS1D

Designed and Verified using this cable: https://www.amazon.co.uk/UGREEN-Charger-Transfer-Compatible-MacBook-Metallic-Grey/dp/B083PPG795

• Tablet NOT INCLUDED
• Cable NOT INCLUDED
• Fixings NOT INCLUDED
